Automatic centering, free operator intervention, simplifying complex alignment.
Auto contact, move stylus to accurate measurement position.
Rotary axis system adopts precision air‑bearing spindle axis.
The final process of spindle axis is manual grinding, it effectively ensure the rotary accuracy of spindle axis with rigorous grinding technic and exceptional craftsmanship.

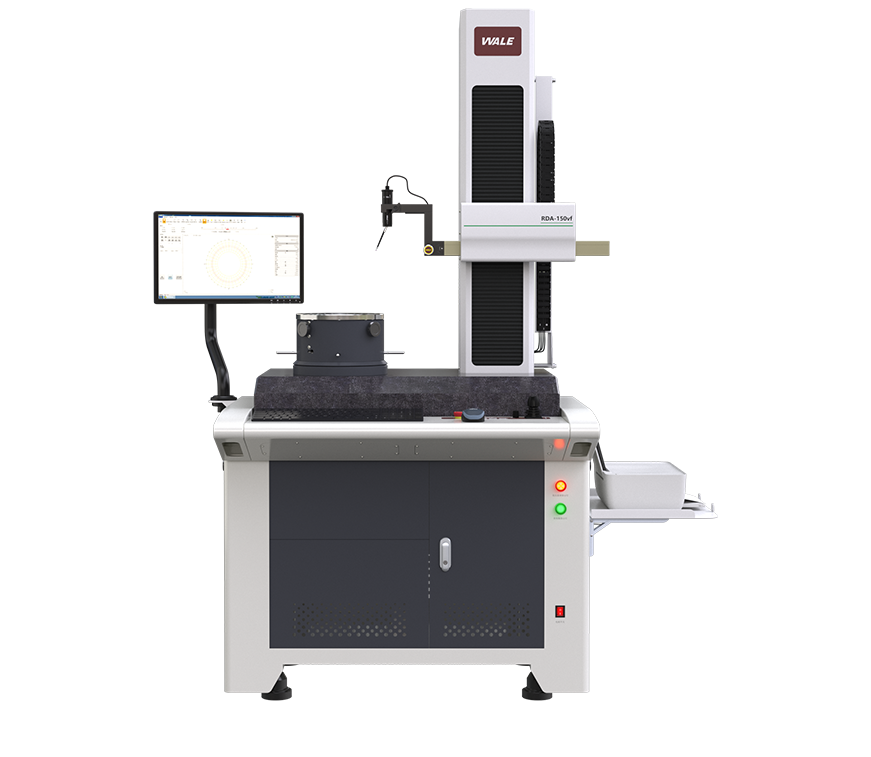

| Model | RDA-150vf | |
| Detector | Max. measure range | ±300um |
| Resolution | 0.01um | |
| Min. measure range | ±75um | |
| Resolution | 0.002um | |
| Spindle axis | Roundness deviation | （0.05+6H/10000）μm |
| Axial deviation | 0.05um（1-15upr） | |
| Rotary speed | 1-20rpm | |
| Rotary turntable | Alignment | Automatic centering |
| Turntable diameter | 240mm | |
| Rotary diameter | 400mm | |
| Measure diameter | 300mm | |
| Load capacity | 30kg | |
| Centering range | ±2mm | |
| Z-axis | Measure range | 400mm |
| Positioning speed | 0.2-50mm/s | |
| R-axis | Measure range | 165mm |
| Positioning speed | 0.2-60mm/s | |

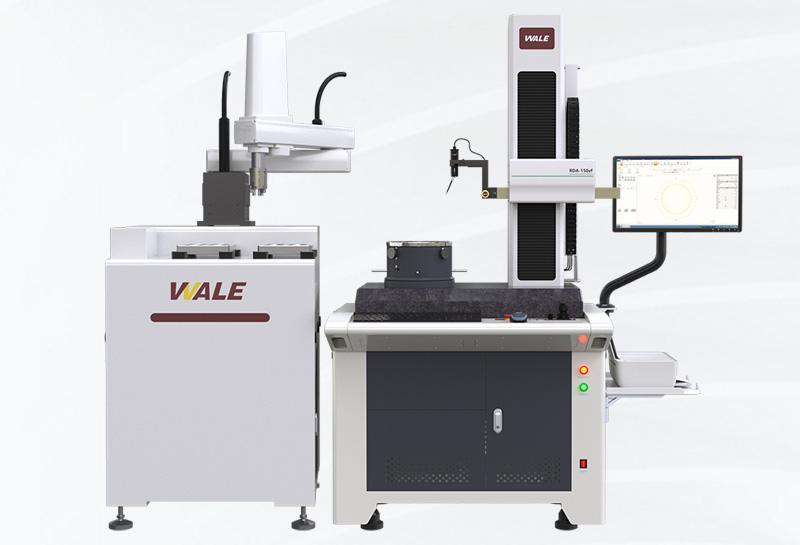

| Automation measuring system | Yes | |
